Solid Oxide
Water Electrolyzer
SOEC Common Specification
Mass Flow Control: Turndown 100:1, Auto N2 Purge
Furnace: Box Furnace(Max 900°C)
Humidity Control: Evaporator, DI water supply control, Heating Chamber(Max 200°C)
Line Heater: Direct Gas Heating, Max 60°℃
Options
– Cell Loading Pressure Control (Auto pressure control, Max 1000kgf)
– Exhausted Gas Colling (Air colling radiator or Water cooling heat exchanger)
– Back Pressure Control (Max 3.5bar)
*All systems include automation control and monitoring software.

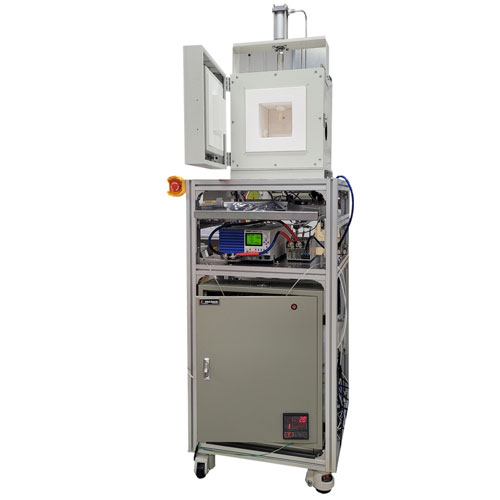

Single Cell Test Station
- SF100U-PE
- Up to 100W
- 550(W) X 650(D) X 600(H) mm
Model: SE100-SO, SE300-SO
Case: Housing Cabinet / 600(W) X 700(D) X 1800(H) mm ~
Option 1: Cell Loading Pressure Control (Auto pressure control, Max 1000kgf)
Option 2: Exhausted Gas Colling (Air colling radiator or Water cooling heat exchanger)
Option 3: Back Pressure Control (Max 3.5bar)

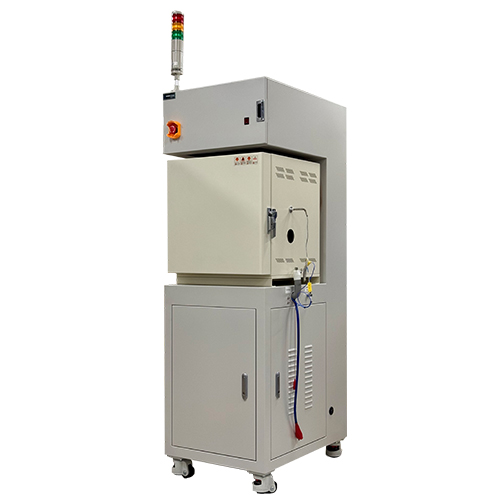

Stack Test Station (500W - 1KW)
- SF100U-PE
- Up to 100W
- 550(W) X 650(D) X 600(H) mm
Model: SE1K-SO, SE3K-SO
Case: Housing Cabinet / 800(W) X 1300(D) X 2000(H) mm
Option 1: Cell Loading Pressure Control (Auto pressure control, Max 1000kgf)
Option 2: Exhausted Gas Colling (Air colling radiator or Water cooling heat exchanger)
Option 3: Back Pressure Control (Max 3.5bar)

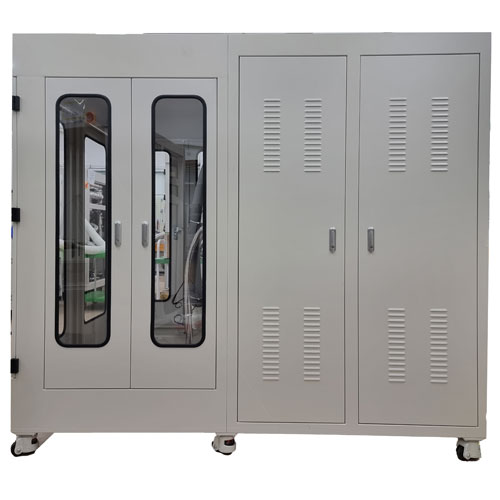

Stack Test Station (5KW - 10KW)
- SF100U-PE
- Up to 100W
- 550(W) X 650(D) X 600(H) mm
Model: SE5K-SO, SE10K-SO
Case: Housing Cabinet / 1000(W) X 1800(D) X 2000(H) mm
Option 1: Cell Loading Pressure Control (Auto pressure control, Max 1000kgf)
Option 2: Exhausted Gas Colling (Air colling radiator or Water cooling heat exchanger)
Option 3: Back Pressure Control (Max 3.5bar)

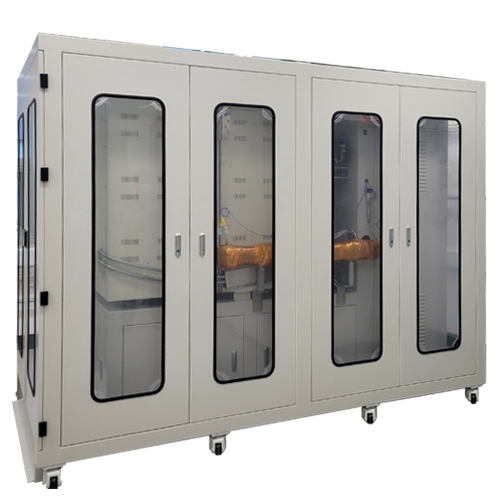

Stack Test Station (30KW)
- SF100U-PE
- Up to 100W
- 550(W) X 650(D) X 600(H) mm
Model: SE30K-SO
Case: Housing Cabinet / Custom
Option 1: Cell Loading Pressure Control (Auto pressure control, Max 1000kgf)
Option 2: Exhausted Gas Colling (Air colling radiator or Water cooling heat exchanger)
Option 3: Back Pressure Control (Max 3.5bar)
