High-Temperature PEM
Fuel Cell
Menu
HTPEMFC Common Specification
Mass Flow Control: Turndown 100:1, Gas mixing and Multi-range control available (excl. bench top models)
Line Temperature Control: Flexible line heating (Max 220℃)
Cell Temperature Control: Air or Liquide Circulation System (Heating & Colling), Max 220℃
Exhausted Gas Colling: Exhausted gas cooling and Trap (Condensation water and gas split)
Back Pressure Control: Max 3.5bar, ±2kpa control stability
Options
– Humidity Control (Gas temperature: RT ~ 95℃, Dewpoint: RT ~ 95℃ ± 1℃)
– Cell voltage monitoring (±5V/Ch)
– Integrated AC impedance measurement system (10mHz ~ 10kHz)
*All systems include automation control and monitoring software.
Single Cell Test Station
- SF100-HP, SF300-HP, SF600-HP
- Up to 600W
- 600(W) X 950(D) X 2000(H) mm

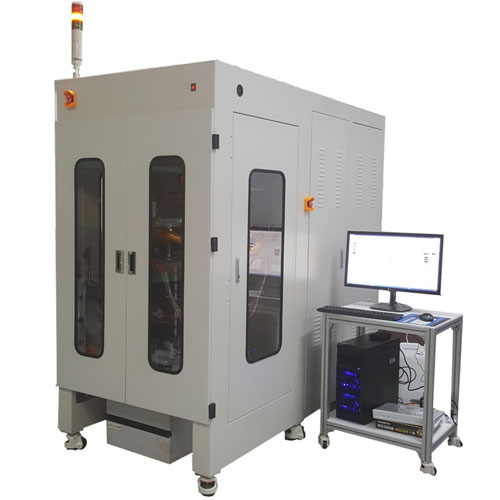

Stack Test Station (1kW - 50kW)
- SF1K-HP, SF3K-HP, SF5K-HP, SF20K-HP, SF25K-HP, SF30K-HP, SF50K-HP
- Up to 50kW
- Custom Size
