Proton Exchange Membrane
Fuel Cell
Menu
PEMFC Common Specification
Mass Flow Control: Turndown 100:1, Gas mixing and Multi-range control available (excl. bench top models)
Humidity Control: Gas temperature: RT ~ 95℃, Dewpoint: RT ~ 95℃ ± 1℃
Line Temperature Control: Flexible line heating
Cell Temperature Control: Air or Liquide Circulation System (Heating & Colling)
Exhausted Gas Colling: Exhausted gas cooling and Trap (Condensation water and gas split)
Back Pressure Control: Max 3.5bar, ±2kpa control stability
Options
– Cell Hardware (PEMFC, 5/10/25/50/100cm2 / Single or triple sepentine flow pattern)
– Integrated AC impedance measurement system
– Cell voltage monitoring (±5V/Ch)
– Stack discharge feature (1~2kW discharge resistor relay)
*All systems include automation control and monitoring software.

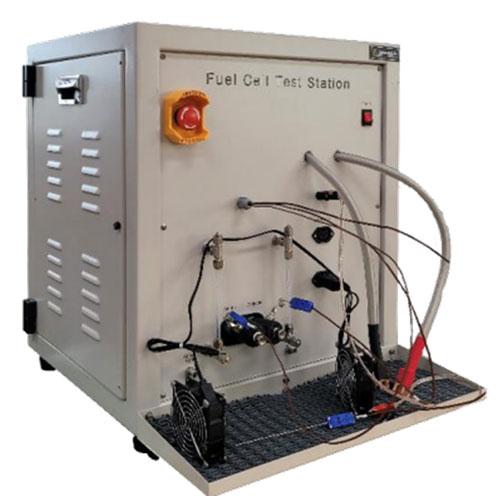

University Test Station
- SF100U-PE
- Up to 100W
- 550(W) X 650(D) X 600(H) mm

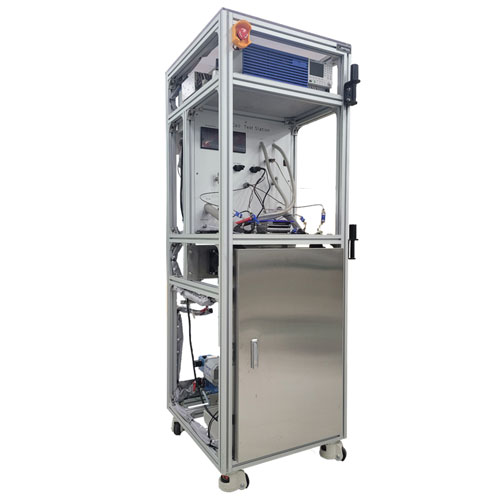

Laboratory Test Station
- SF100L-PE, SF300L-PE
- Up to 300W
- 600W) X 600(D) X 1800(H) mm
Single Cell Test Station
- SF100-PE, SF300-PE, SF600-PE
- Up to 600W
- 600(W) X 950(D) X 2000(H) mm

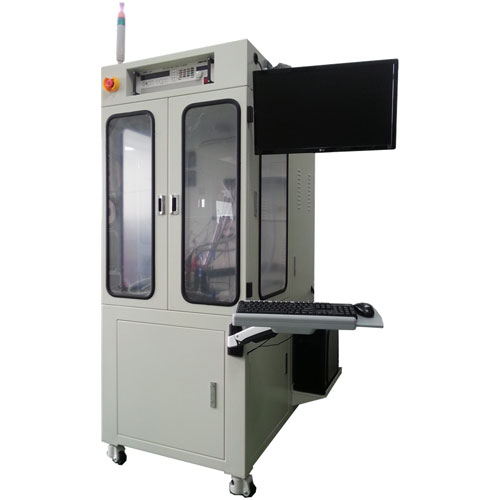

Stack Test Station (1-3kW)
- SF1K-PE, SF2K-PE, SF3K-PE
- Up to 3kW
- 900(W) X 1600(D) X 2000(H) mm

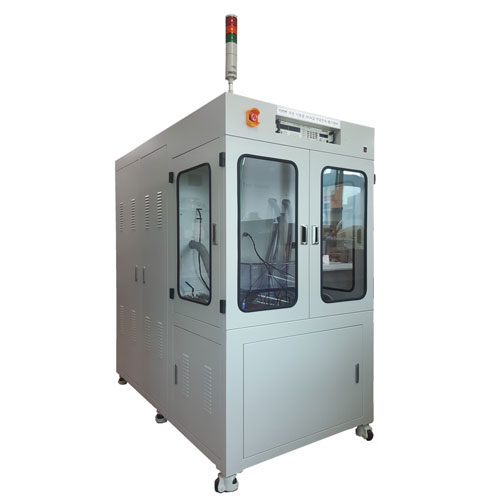

Stack Test Station (5-10kW)
- SF5K-PE, SF7K-PE, SF10K-PE
- Up to 10kW
- 1100(W) X 1800(D) X 2000(H) mm

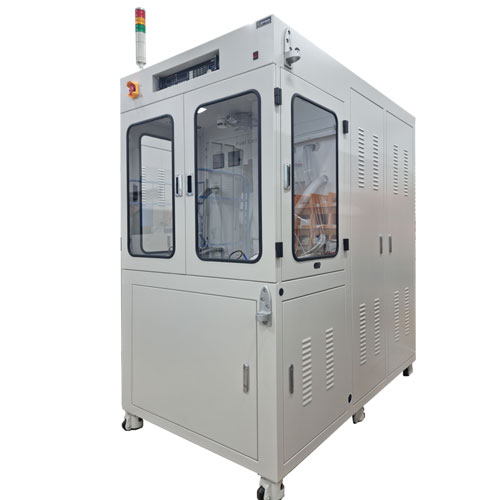

Stack Test Station (20kW)
- SF20K-PE
- Up to 20kW
- 1200(W) X 2200(D) X 2000(H) mm
Stack Test Station (25-30kW)
- SF25K-PE, SF30K-PE
- Up to 30kW
- 1400(W) X2500(D) X 2000(H) mm

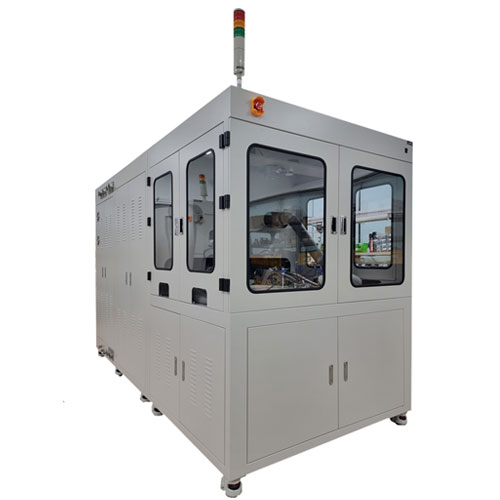

Stack Test Station (50-100kW)
- SF50K-PE, SF100K-PE
- Up to 100kW
- 1500(W) X 3300(D) X 2000(H) mm

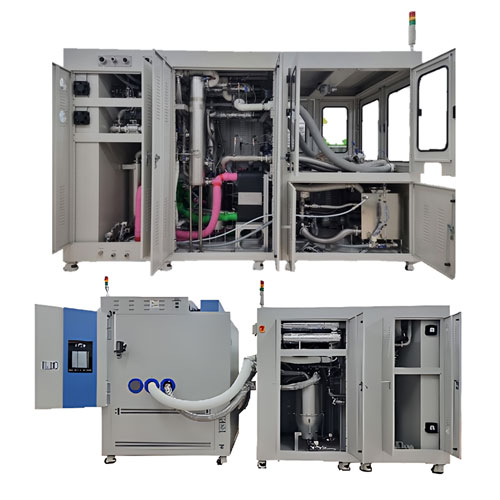

Stack Test Station (150-200kW)
- SF150K-PE, SF200K-PE
- Up to 200kW
- 1700(W) X 4500(D) X 2200(H) mm

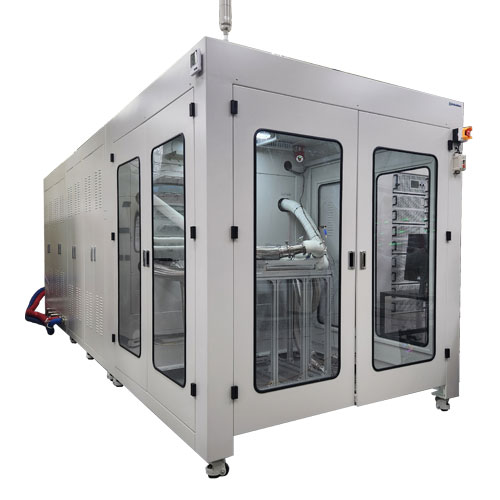

Stack Test Station (250-300kW)
- SF250K-PE, SF300K-PE
- Up to 300kW
- 2000(W) X 6000(D) X 2200(H) mm
