SOFC Common Specification
Mass Flow Control: Turndown 100:1, Gas mixing and Multi-range control available (excl. bench top models)
Furnace: Vertical tube or Box
Furnace: Vertical tube or Box
– Humidity Control (Gas temperature: RT ~ 95℃, Dewpoint: RT ~ 95℃ ± 1℃)
– Line Heater (Direct Gas Heating, Max 600℃)
– Exhausted Gas Colling (Air colling radiator or Water cooling heat exchanger)
– Back Pressure Control (Max 3.5bar, ±2kpa control stability)
– Cell Loading Pressure Control (Spring load or Auto pressure control, Max 1000kgf)
– Button Cell Jig (Alumina tube & holder set)
– Planar Cell Jig (Metal(Inconel) bipolar plate set)
*All systems include automation control and monitoring software.

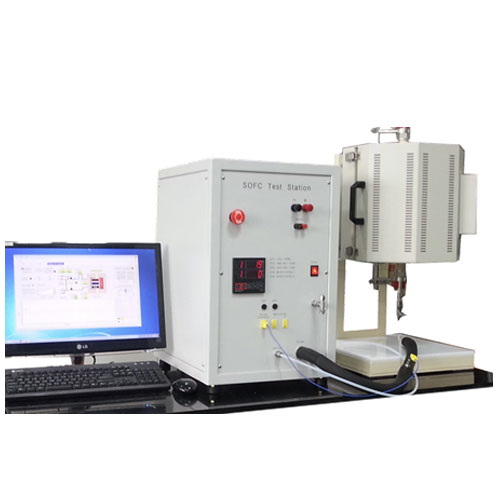

University Test Station
- SF50U-SO
- Up to 50W
- Max 1000℃
- 400(W) X 500(D) X 550(H) mm

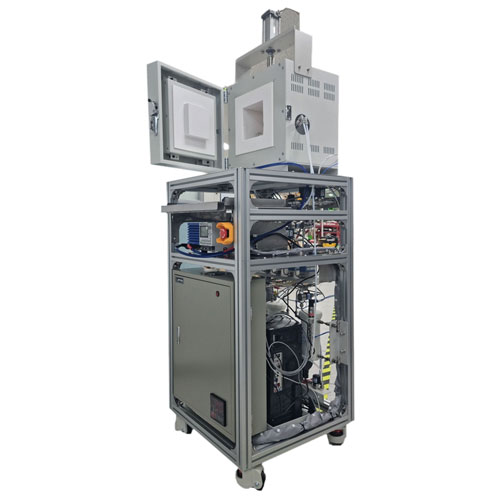

Laboratory Test Station
- SF50L-SO, SF100L-SO
- Up to 100W
- Max 1000℃
- 600(W) X 700(D) X 1800(H) mm

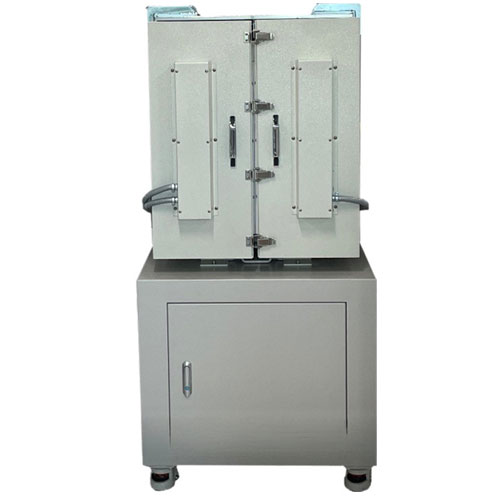

Single Cell Test Station
- SF300-SO
- Up to 300W
- Max 1000℃
- 800(W) X 1200(D) X 2000) mm

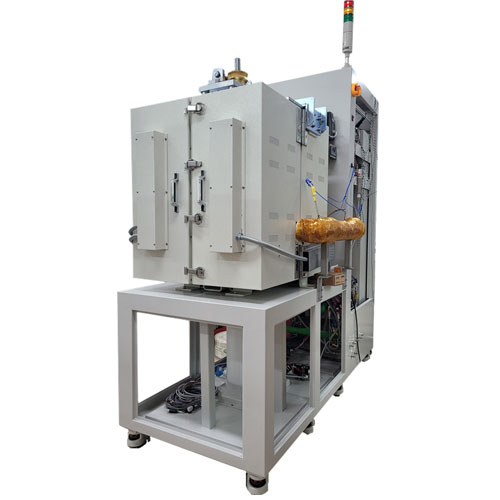

Stack Test Station (500W-1kW)
- SF500-SO, SF1K-SO
- Up to 1kW
- Max 900℃
- 800(W) X 1300(D) X 2000(H) mm

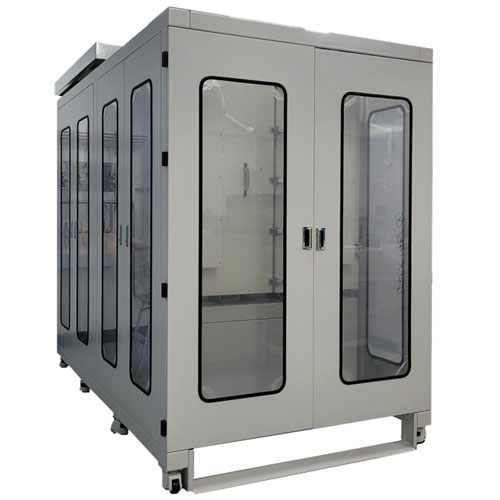

Stack Test Station
- SF5K-SO, SF10K-SO
- Up to 10KW
- Max 900℃
- 1000(W) X 1800(D) X 2000(H) mm

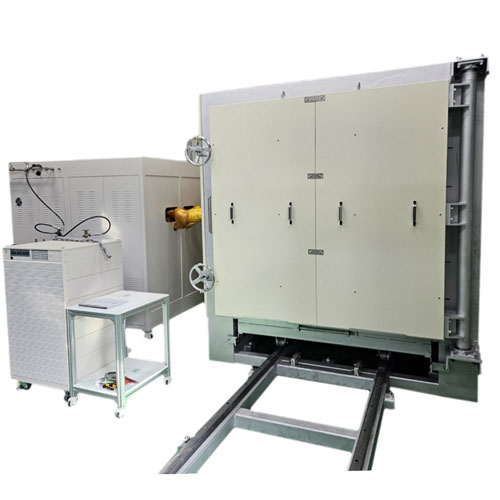

Stack Test Station (25kW)
- SF25K-SO
- Up to 25KW
- Max 900℃
- Custom Size
